超级电容的原理和特点
In general, capacitors have an insulating material, known as a dielectric, between two opposing electrodes.

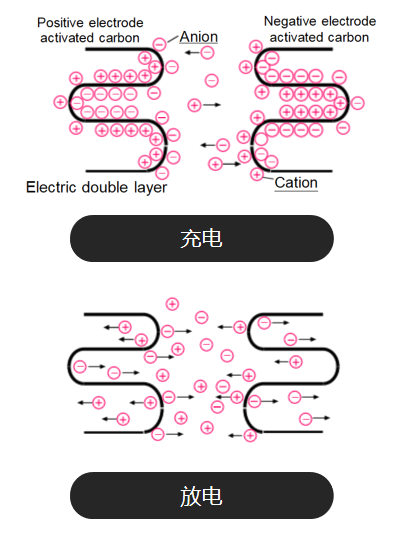

However, EDLC operates without a conventional dielectric. Instead, it leverages a physical mechanism to create a double-layer structure with dielectric-like properties. This is why it is referred to as a double-layer capacitor. The charging and discharging process in double-layer capacitors occurs through an ion-absorption layer formed on the surfaces of the positive and negative electrodes, utilizing a phenomenon known as adsorption and desorption.

在电双层电容器中,有两种类型的电解质系。一种是水溶性的,另一种是非水溶性的。与水溶性电解质相比,非水溶性电解质可以提高每个电池的耐压。我们的黄金电容器由非水溶性电解质构成,具有体积小,重量轻的优势。
电双层电容器的电容范围介于铝电解电容器和二次电池之间。在应用上,主要作为二次电池使用。

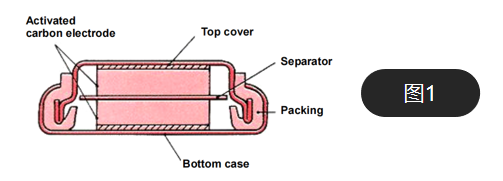

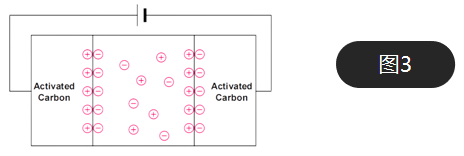

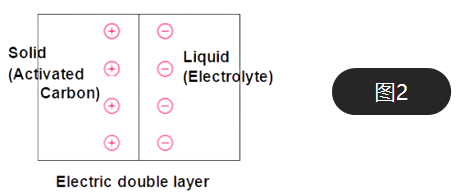

图1所示为硬币形单芯电双层电容器的截面图。 电池内部的电极由活性炭制成。然后在电极上浸渍电解液。这种分离器对离子具有很高的绝缘性能,并能穿透两者之间的电极,防止短路。顶盖和底壳之间的密封是通过添加填料来完成的。 双电层是在电解质边界处形成极薄电离层的状态和电极(如图2所示),可以通过施加电压充电(如图3所示)
双电层充当绝缘体,当施加外部直流电压时,不允许电流的流动。然而,随着电压的增加,达到雪崩点,电流就会开始流动。 这个电压的大小就是“分解电压”。进一步提高这个电压会导致电解液分解和额外的电流流动。金电容器的耐压是由分解电压决定的。分解电压的构成由金电容器的电解液和电极材料决定。

电双层电容器使用活性炭电极(固体)和有机电解质(液体)。在电极和电解质的连接处形成的电双层非常薄,就像一个分子。用于电极的活性炭有非常大的表面积。所以它的容量就变得非常高。
